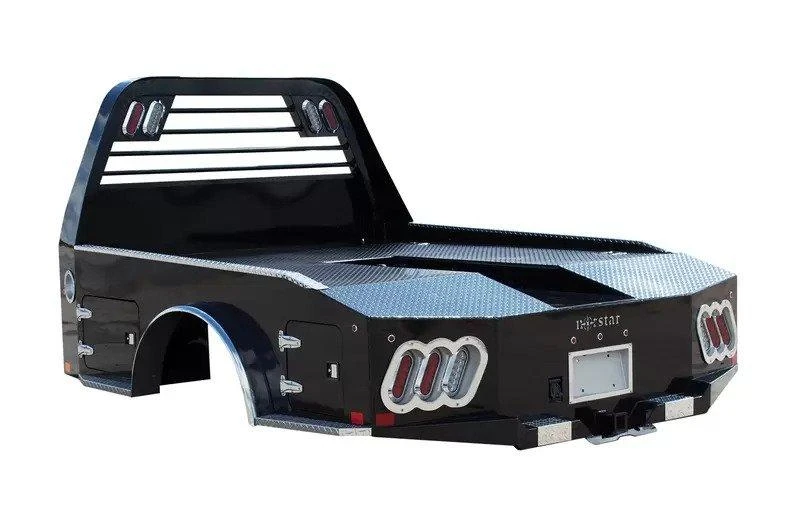

The WH Western Deluxe Bed is our top of the line bed. It is sure to win first in class when you combine it with your first class hauling rig. Accessories abound and the details have been sweated to ensure spectacular fit and finish. But this bed is not all show, it has the same rugged construction as every Norstar bed and can haul anything your rig can pull.

Description

The standard 2.5” receiver allows you to add a hitch for bumper pull cargo and a 2 5/16” gooseneck ball is standard in case you are hauling a heavyweight. Our receivers are lab tested and certified for 18,500 lbs bumper capacity and 30,000 lbs gooseneck capacity. This bed is the perfect fit for any single or dual wheeled work truck and can keep up with your daily workload. The WH comes equipped and ready to impress loaded with 1/8” diamond plate floor and 10 gauge sides, with 11 gauge skirted bumper coated in gloss black powder coat. We have put just about every option on this bed except the kitchen sink – standard including cast housings on rear lighting, fuel filler, license plate mount, chrome accented head rack lighting, running boards and loads of diamond plate trim. Go to work - in style.

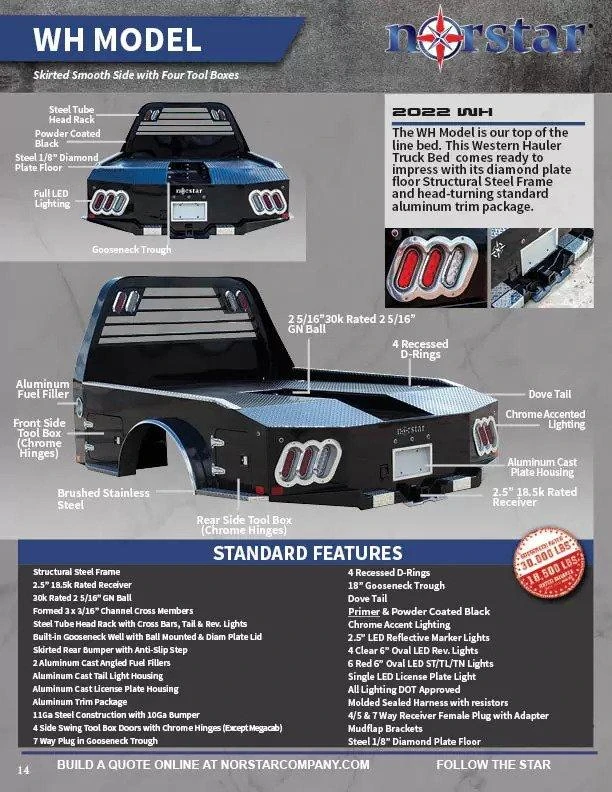

Standard Features

• Structural Steel Frame
• 2.5" 18.5k Rated Bumper Receiver
• 30k Rated 2 5/16" Gooseneck Ball
• 4” Runner Channels
• Formed 3 x 3/16” Channel Cross Members
• Steel Tube Head Rack w/ Cross Bars, Tail & Rev. Lights
• Steel 1/8” Diamond Plate Floor
• Built in Gooseneck Well w/ Ball Mounted & Diam Plate Lid
• Skirted Rear Bumper w/ Anti Slip Step
• 2 Aluminum Cast Angled Fuel Fillers
• Aluminum Cast Tail Light Housing
• Aluminum Cast License Plate Housing
• Aluminum Trim Package
• 11 Ga Steel Construction
• 4 Side Swing Tool Box Doors w/ Chrome Hinges (Except Mega Cab)
• 7 Way Plug in Gooseneck Trough
• 4 Recessed D-Rings
• 18” Gooseneck Trough
• Dove Tail
• Powder Coated Black
• Chrome Accent Lighting
• 3/4” LED Reflective Marker Lights
• 4 Clear 6” Oval LED Rev. Lights
• 6 Red 6” Oval LED ST/TL/TN Lights
• Single LED License Plate Light
• All Lighting DOT Approved
• Molded Sealed Harness w/ Resistors
• 7 Way Receiver Female Plug w/ ADAPTER
• Mud Flap Brackets
• 11 Ga Sides and Rear Bumper
